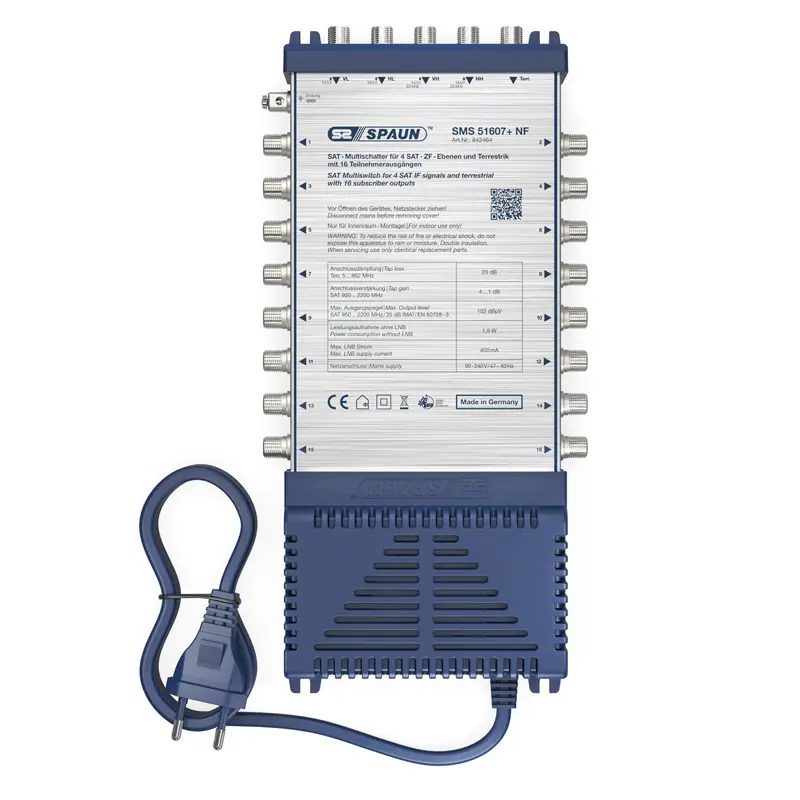

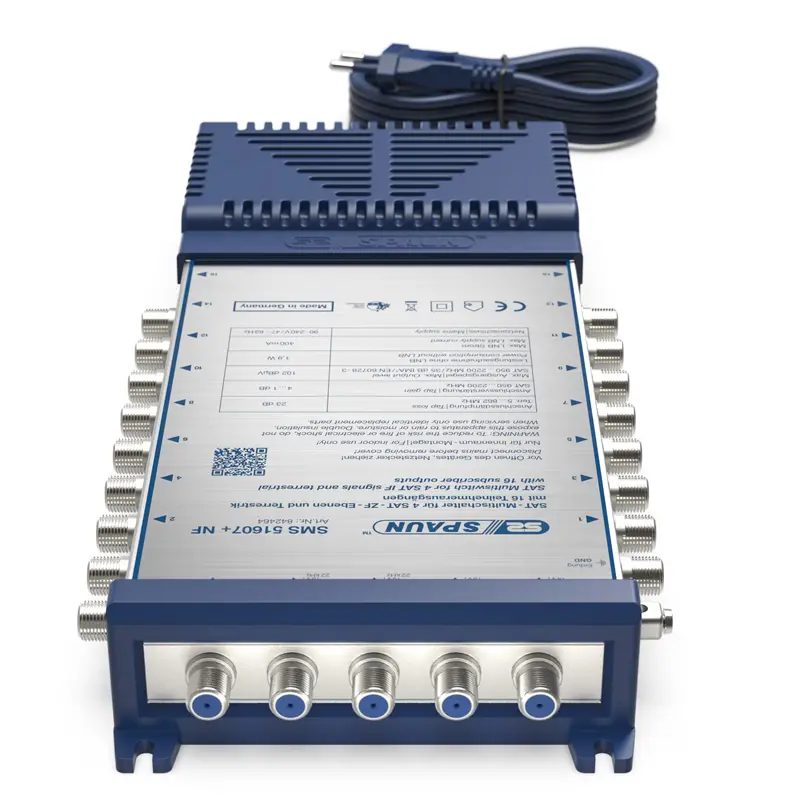

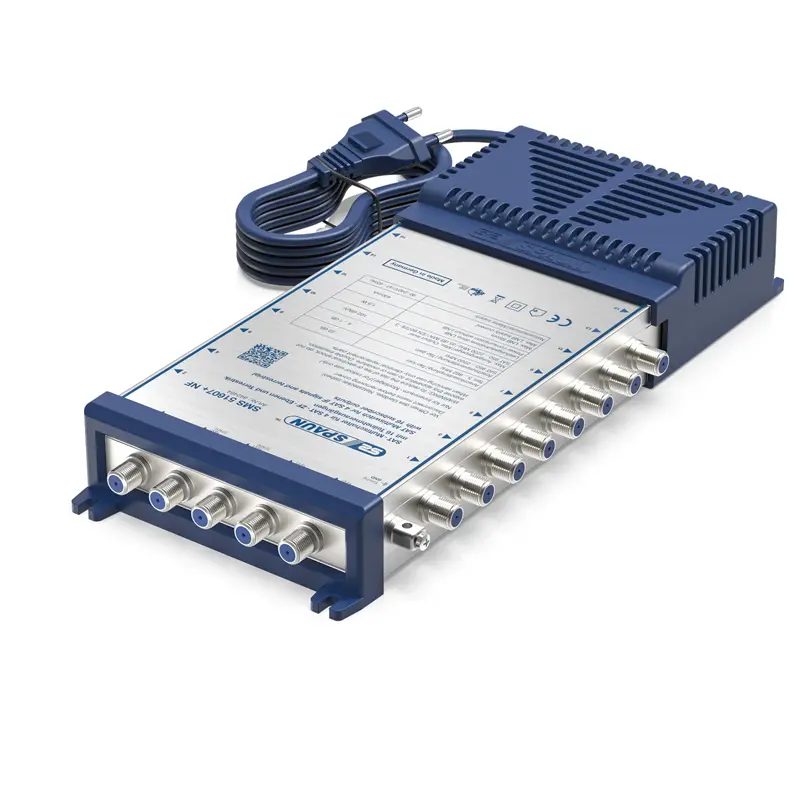

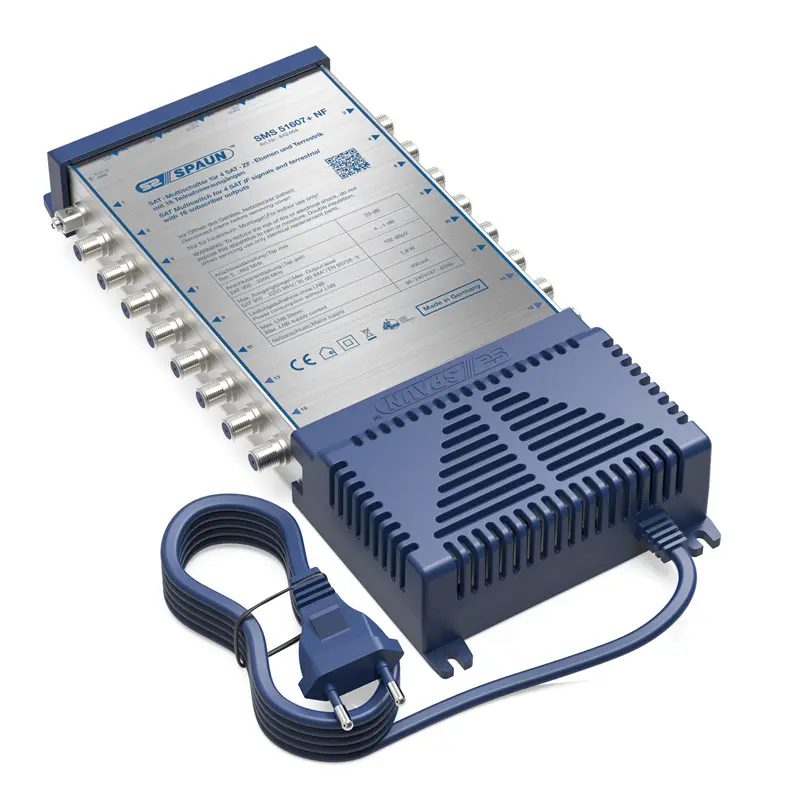

Spaun SMS 51607+ NF - Multiswitch
Spaun SMS 51607+ NF - Multiswitch
€114.90*
% €149.90* (23.35% saved)- 16 subscribers independently – every output feeds one receiver that switches freely between all bands
- One satellite position – designed for Astra 19.2 degrees East
- Standby at 0.1 watt – amplifiers and remote supply run only while at least one receiver draws supply voltage
- Quattro and Quad – Quattro LNB recommended, Quad LNB via the 22 kHz generator
- Return path capable terrestrial input – passive design, suitable for systems with a return channel as well
- Short-circuit proof power supply – built in, runs on 90 to 240 volts and 47 to 63 hertz
- 500 mA remote supply current – feeds the connected LNBs reliably over the satellite cabling
Available, delivery time: 1-2 days
Product information "Spaun SMS 51607+ NF - Multiswitch"
The Spaun SMS 51607+ NF distributes one satellite to 16 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.
Technical data
| Type | SMS 51607+ NF (item no. 842464) |
| Satellite positions | 1 |
| Subscriber outputs | 16 |
| Suitable LNB | Quattro LNB (recommended), Quad LNB via the 22 kHz generator |
| Standby power | typ. 0.1 W |
| Terrestrial input | passive, return path capable |
| Power supply | built-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof |
| LNB remote supply current | max. 500 mA |
The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.
Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.
| Distribution principle: | Direct connection (legacy) |
|---|---|
| Serie: | SMS |
