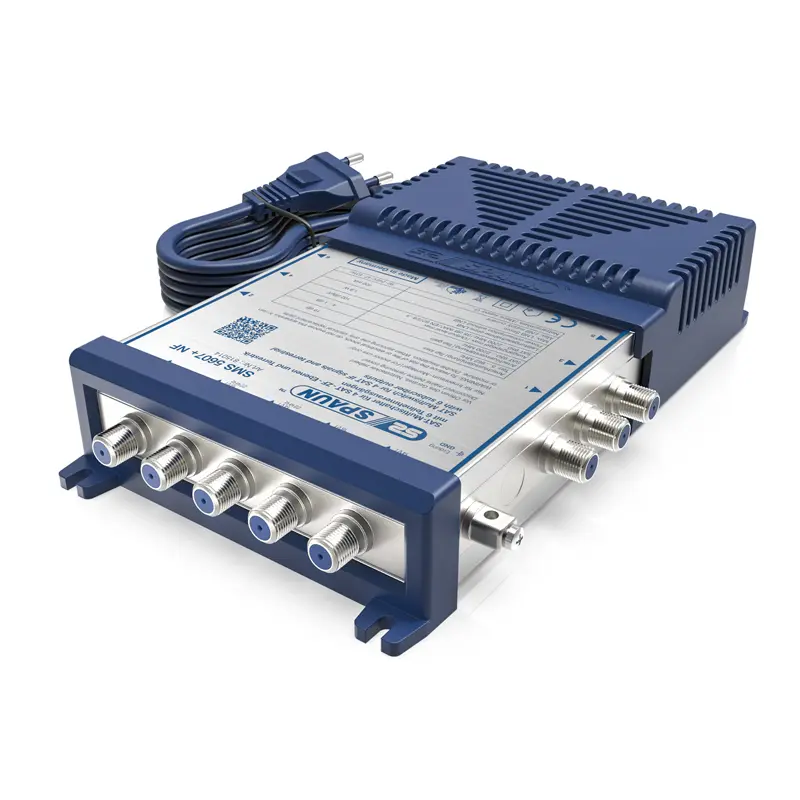

The Spaun SMS 5607+ NF distributes one satellite to 6 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.Technical data TypeSMS 5607+ NF (item no. 815014) Satellite positions1 Subscriber outputs6 Suitable LNBQuattro LNB (recommended), Quad LNB via the 22 kHz generator Standby powertyp. 0.1 W Terrestrial inputpassive, return path capable Power supplybuilt-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof LNB remote supply currentmax. 500 mA The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.

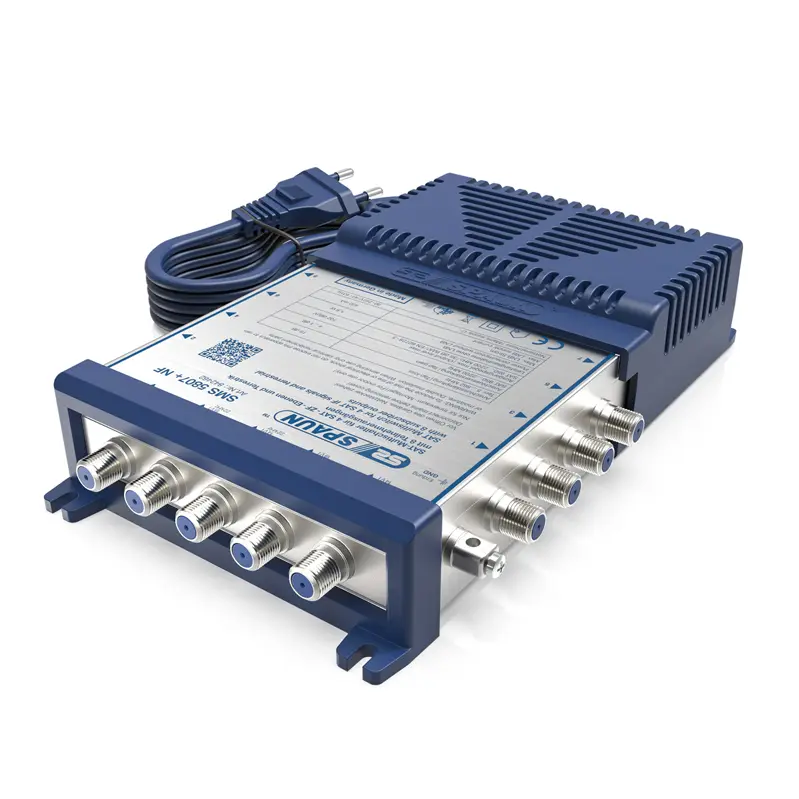

The Spaun SMS 5807+ NF distributes one satellite to 8 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.Technical data TypeSMS 5807+ NF (item no. 842462) Satellite positions1 Subscriber outputs8 Suitable LNBQuattro LNB (recommended), Quad LNB via the 22 kHz generator Standby powertyp. 0.1 W Terrestrial inputpassive, return path capable Power supplybuilt-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof LNB remote supply currentmax. 500 mA The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.

The Spaun SMS 51207+ NF distributes one satellite to 12 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.Technical data TypeSMS 51207+ NF (item no. 842463) Satellite positions1 Subscriber outputs12 Suitable LNBQuattro LNB (recommended), Quad LNB via the 22 kHz generator Standby powertyp. 0.1 W Terrestrial inputpassive, return path capable Power supplybuilt-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof LNB remote supply currentmax. 500 mA The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.

The Spaun SMS 51607+ NF distributes one satellite to 16 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.Technical data TypeSMS 51607+ NF (item no. 842464) Satellite positions1 Subscriber outputs16 Suitable LNBQuattro LNB (recommended), Quad LNB via the 22 kHz generator Standby powertyp. 0.1 W Terrestrial inputpassive, return path capable Power supplybuilt-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof LNB remote supply currentmax. 500 mA The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.

The Spaun SMS 9807+ NF distributes two satellites to 8 subscriber outputs. Its defining feature is the standby circuit: the satellite IF amplifiers and the LNB remote supply only run while at least one receiver feeds a supply voltage. With the system idle, consumption falls to typically 0.1 watt – over the years the difference you notice most against a distributor that runs around the clock.Technical data TypeSMS 9807+ NF (item no. 842495) Satellite positions2 Subscriber outputs8 Suitable LNB2 x Quattro LNB Standby powertyp. 0.1 W Terrestrial inputpassive, return path capable Power supplybuilt-in switch mode power supply, 90–240 V, 47–63 Hz, short-circuit proof LNB remote supply currentmax. 500 mA The connected receivers select the polarisation and band themselves using the usual switching criteria. The terrestrial input is return path capable, so systems with a return channel can be built with it as well. Make sure the input levels of the satellite bands arrive at a similar strength.Spaun develops and manufactures its multiswitches in Germany – design, production and technical support come from one source. You will find the complete range in the Multiswitch category.
